Solution Pattern: Run your private workloads in Disconnected HCP OpenShift clusters with OpenShift Virtualization

Workshop

In this workshop, we will look at how we utilize our internal container registry to deploy a disconnected HCP cluster using OpenShift Virtualization.

1. Installing the workshop environment

If you are a Red Hatter, you can order a lab environment using this link.
If you want to setup your own environment from scratch, follow this link.

2. Delivering the workshop

2.1. Deploying Internal Registry

Download oc-mirror cli:

curl -L -o oc-mirror.tar.gz https://mirror.openshift.com/pub/openshift-v4/amd64/clients/ocp/4.18.0-rc.8/oc-mirror.tar.gz;tar -xzf oc-mirror.tar.gz;chmod u+x oc-mirror

Create a pull secret file, you can get your pull secret from console.redhat.com and paste it in the file:
```
vi  ./openshift_pull.json
```

Create this bash script for creating an internal registry:

vi  ./registry.sh

#!/usr/bin/env bash

set -euo pipefail

PRIMARY_NIC=$(ls -1 /sys/class/net | grep -v podman | head -1)
export PATH=/root/bin:$PATH
export PULL_SECRET="/home/lab-user/openshift_pull.json"

if [[ ! -f $PULL_SECRET ]];then
  echo "Pull Secret not found, exiting..."
  exit 1
fi

dnf -y install podman httpd httpd-tools jq skopeo libseccomp-devel
export IP=$(ip -o addr show $PRIMARY_NIC | head -1 | awk '{print $4}' | cut -d'/' -f1)
REGISTRY_NAME=registry.$(hostname --long)
REGISTRY_USER=dummy
REGISTRY_PASSWORD=dummy
KEY=$(echo -n $REGISTRY_USER:$REGISTRY_PASSWORD | base64)
echo "{\"auths\": {\"$REGISTRY_NAME:5000\": {\"auth\": \"$KEY\", \"email\": \"sample-email@domain.ltd\"}}}" > /root/disconnected_pull.json
mv ${PULL_SECRET} /root/openshift_pull.json.old
jq ".auths += {\"$REGISTRY_NAME:5000\": {\"auth\": \"$KEY\",\"email\": \"sample-email@domain.ltd\"}}" < /root/openshift_pull.json.old > $PULL_SECRET
mkdir -p /opt/registry/{auth,certs,data,conf}
cat <<EOF > /opt/registry/conf/config.yml
version: 0.1
log:
  fields:
    service: registry
storage:
  cache:
    blobdescriptor: inmemory
  filesystem:
    rootdirectory: /var/lib/registry
  delete:
    enabled: true
http:
  addr: :5000
  headers:
    X-Content-Type-Options: [nosniff]
health:
  storagedriver:
    enabled: true
    interval: 10s
    threshold: 3
compatibility:
  schema1:
    enabled: true
EOF
openssl req -newkey rsa:4096 -nodes -sha256 -keyout /opt/registry/certs/domain.key -x509 -days 3650 -out /opt/registry/certs/domain.crt -subj "/C=US/ST=Madrid/L=San Bernardo/O=Karmalabs/OU=Guitar/CN=$REGISTRY_NAME" -addext "subjectAltName=DNS:$REGISTRY_NAME"
cp /opt/registry/certs/domain.crt /etc/pki/ca-trust/source/anchors/
update-ca-trust extract
htpasswd -bBc /opt/registry/auth/htpasswd $REGISTRY_USER $REGISTRY_PASSWORD
podman create --name registry --net host --security-opt label=disable --replace -v /opt/registry/data:/var/lib/registry -v /opt/registry/auth:/auth -v /opt/registry/conf/config.yml:/etc/docker/registry/config.yml -e "REGISTRY_AUTH=htpasswd" -e "REGISTRY_AUTH_HTPASSWD_REALM=Registry" -e "REGISTRY_HTTP_SECRET=ALongRandomSecretForRegistry" -e REGISTRY_AUTH_HTPASSWD_PATH=/auth/htpasswd -v /opt/registry/certs:/certs -e REGISTRY_HTTP_TLS_CERTIFICATE=/certs/domain.crt -e REGISTRY_HTTP_TLS_KEY=/certs/domain.key docker.io/library/registry:latest
[ "$?" == "0" ] || !!

Create registry by running:

chmod u+x ./registry.sh
sudo ./registry.sh
sudo podman start registry

Check registry status by using the following command:
```
sudo podman ps
```
Make changes to ensure registry is reachable from jump box and management nodes. Add an entry in /etc/hosts for registry.hypervisor in 127.0.0.1 line on jump box/bastion.
```
sudo vi /etc/hosts
```
Add an entry to dnsmasq so that registry dns is accessible from OpenShift. Add this line: host-record=registry.hypervisor,192.168.125.1
```
sudo vi /opt/dnsmasq/include.d/infrastructure-host.ipv4
```
Restart dnsmasq using the below command:
```
sudo systemctl restart dnsmasq-virt
```

2.2. Copying images to internal registry and adding configs to the cluster:

Create a file named imageset.yaml using the following code:

cat << EOF > $HOME/imageset-config.yaml
---
kind: ImageSetConfiguration
apiVersion: mirror.openshift.io/v2alpha1
mirror:
 platform:
   channels:
   - name: stable-4.17
     type: ocp
     minVersion: 4.17.15
     maxVersion: 4.17.16
   kubeVirtContainer: true


 operators:
 - catalog: registry.redhat.io/redhat/redhat-operator-index:v4.17
   packages:
   - name: web-terminal
     channels:
     - name: fast
   - name: lvms-operator
   - name: local-storage-operator
   - name: odf-csi-addons-operator
   - name: odf-operator
   - name: mcg-operator
   - name: ocs-operator
   - name: metallb-operator
   - name: kubevirt-hyperconverged
   - name: multicluster-engine
   - name: advanced-cluster-management


 additionalImages:
 - name: registry.redhat.io/rhel8/support-tools
 - name: quay.io/karmab/origin-keepalived-ipfailover:latest
 - name: registry.redhat.io/openshift4/ose-kube-rbac-proxy:v4.10


 helm: {}
EOF

Generate Credentials to be used by oc-mirror command:

sudo podman login registry.hypervisor:5000 --authfile=/home/lab-user/openshift_pull.json;mkdir -p $XDG_RUNTIME_DIR/containers/;sudo cp /home/lab-user/openshift_pull.json $XDG_RUNTIME_DIR/containers/auth.json;sudo mkdir -p /root/.docker;sudo cp  $XDG_RUNTIME_DIR/containers/auth.json /root/.docker/config.json

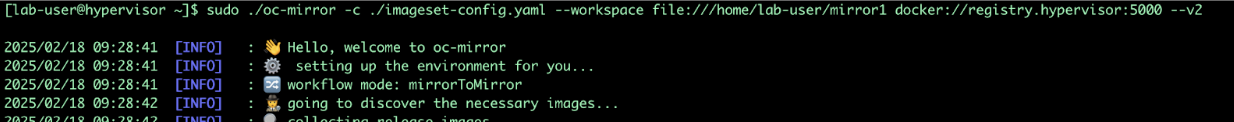

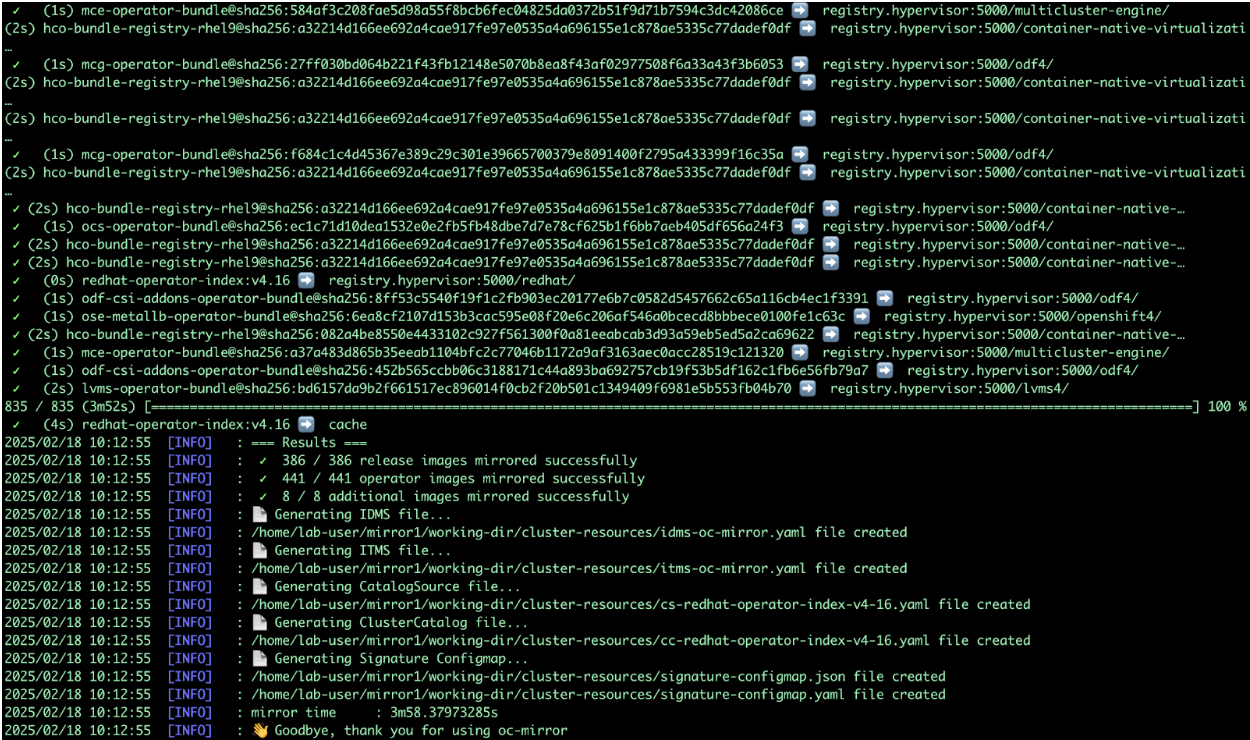

Run oc-mirror cli command to mirror the images:

sudo mkdir -p /home/lab-user/mirror1

sudo ./oc-mirror -c ./imageset-config.yaml --workspace file:///home/lab-user/mirror1 docker://registry.hypervisor:5000 --v2

oc login -u <user> -p <password> <apiserver_url>

Grab the cert from /opt/registry/certs/domain.crt and add in this yaml to create a configmap

apiVersion: v1
kind: ConfigMap
metadata:
  name: registry-config
  namespace: openshift-config
data:
  registry.hypervisor..5000: |
    -----BEGIN CERTIFICATE-----
    -----END CERTIFICATE-----

Before applying this configmap, validate your yaml using this tool.

oc apply -f registry-config.yaml

Now we need to patch the clusterwide object image.config.openshift.io including this:

oc edit image.config.openshift.io

spec:
  additionalTrustedCA:
    name: registry-config

Update the registry creds in the Management cluster. If this command prompts for username and password: dummy/dummy.

sudo podman logout registry.hypervisor:5000 ;sudo podman login registry.hypervisor:5000 --authfile=./mycreds.json; sudo chmod 666 ./mycreds.json;oc set data secret/pull-secret -n openshift-config --from-file=.dockerconfigjson=./mycreds.json

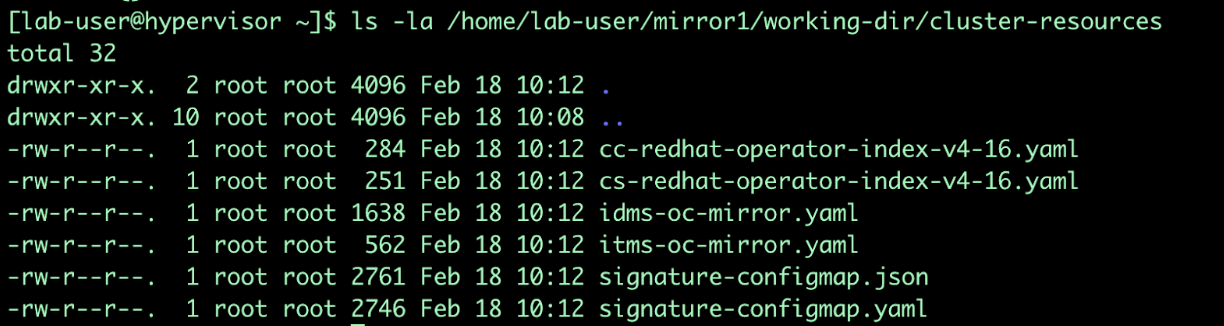

As the mirroring process is complete, apply the YAML files from the results directory to the cluster by running the following command:

oc apply -f /home/lab-user/mirror1/working-dir/cluster-resources/itms-oc-mirror.yaml /home/lab-user/mirror1/working-dir/cluster-resources/idms-oc-mirror.yaml

After 2 mins, run the below command:

oc apply -f /home/lab-user/mirror1/working-dir/cluster-resources/cs-redhat-operator-index-v4-<version>.yaml

To verify the resources created with above command:

oc get imagedigestmirrorset
oc get imagetagmirrorset
oc get catalogsource -n openshift-marketplace

2.3. Deploying Operators from Internal Registry:

To disable the default CatalogSource

oc patch OperatorHub cluster --type json -p '[{"op": "add", "path": "/spec/disableAllDefaultSources", "value": true}]'

2.3.1. RHACM Installation

We are installing RHACM as we need MCE for the cluster provisioning. MCE is required for this setup. You can install MCE only if you prefer.

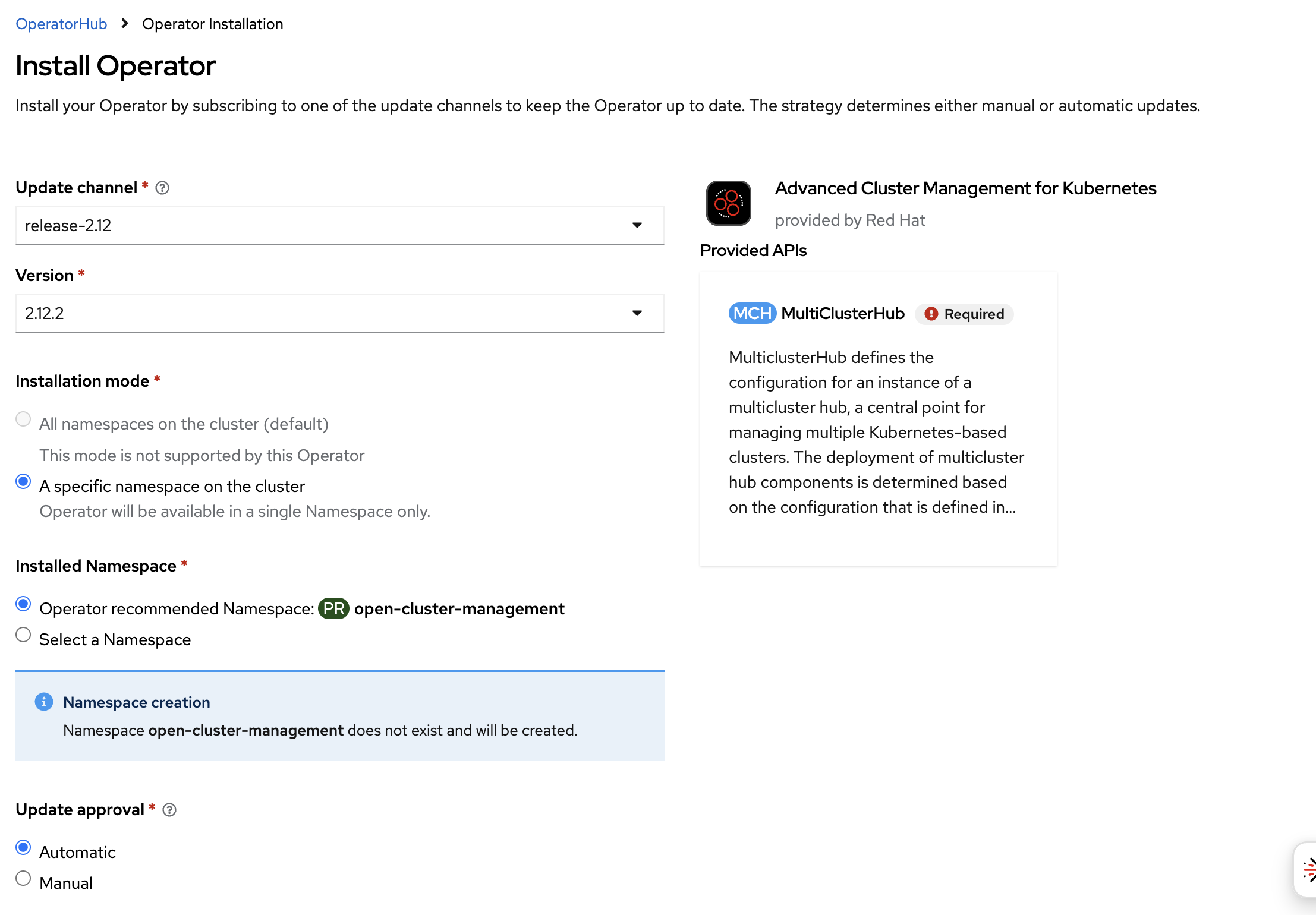

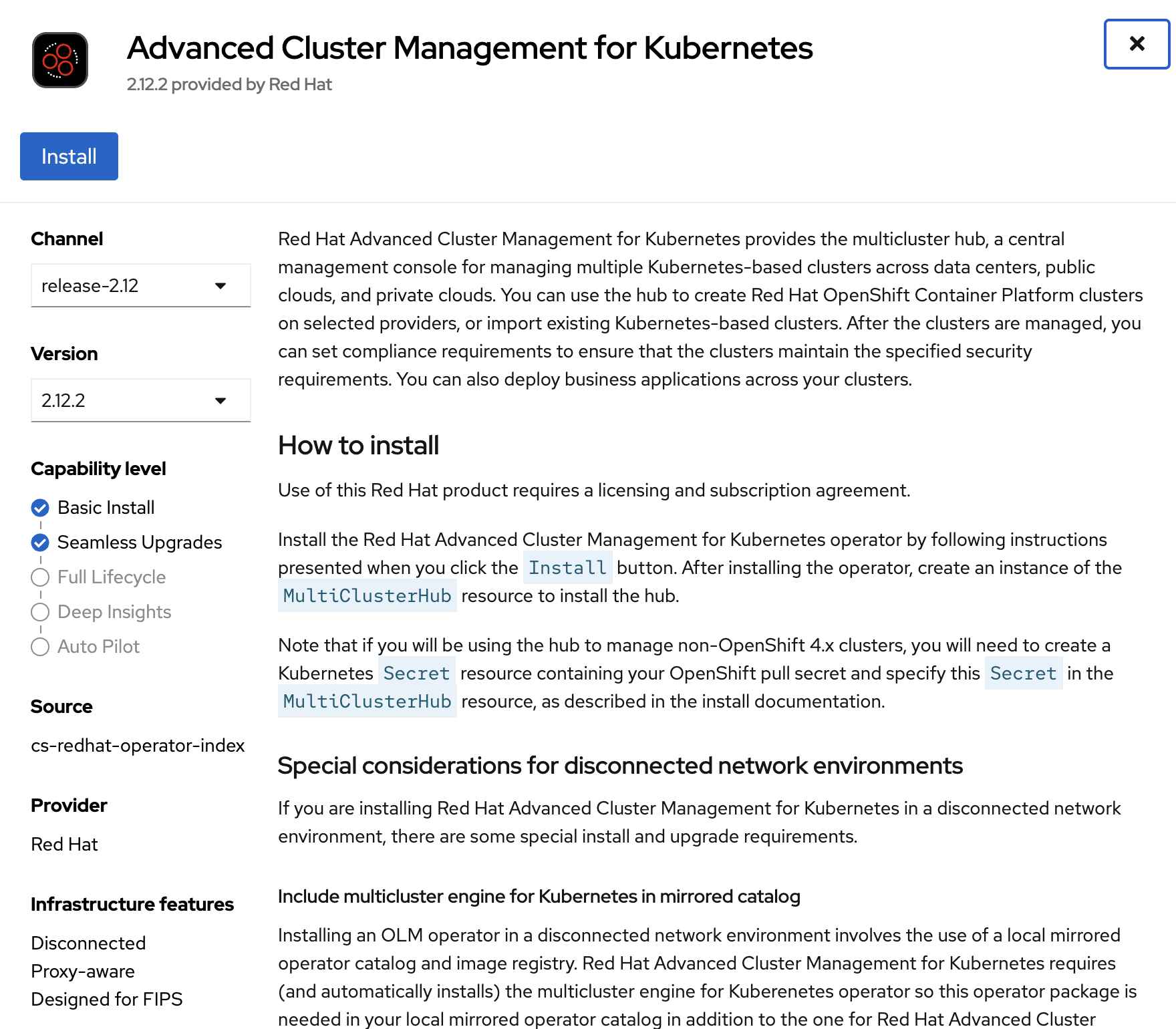

Install RHACM operator from OperatorHub

Select default values and install the operator.

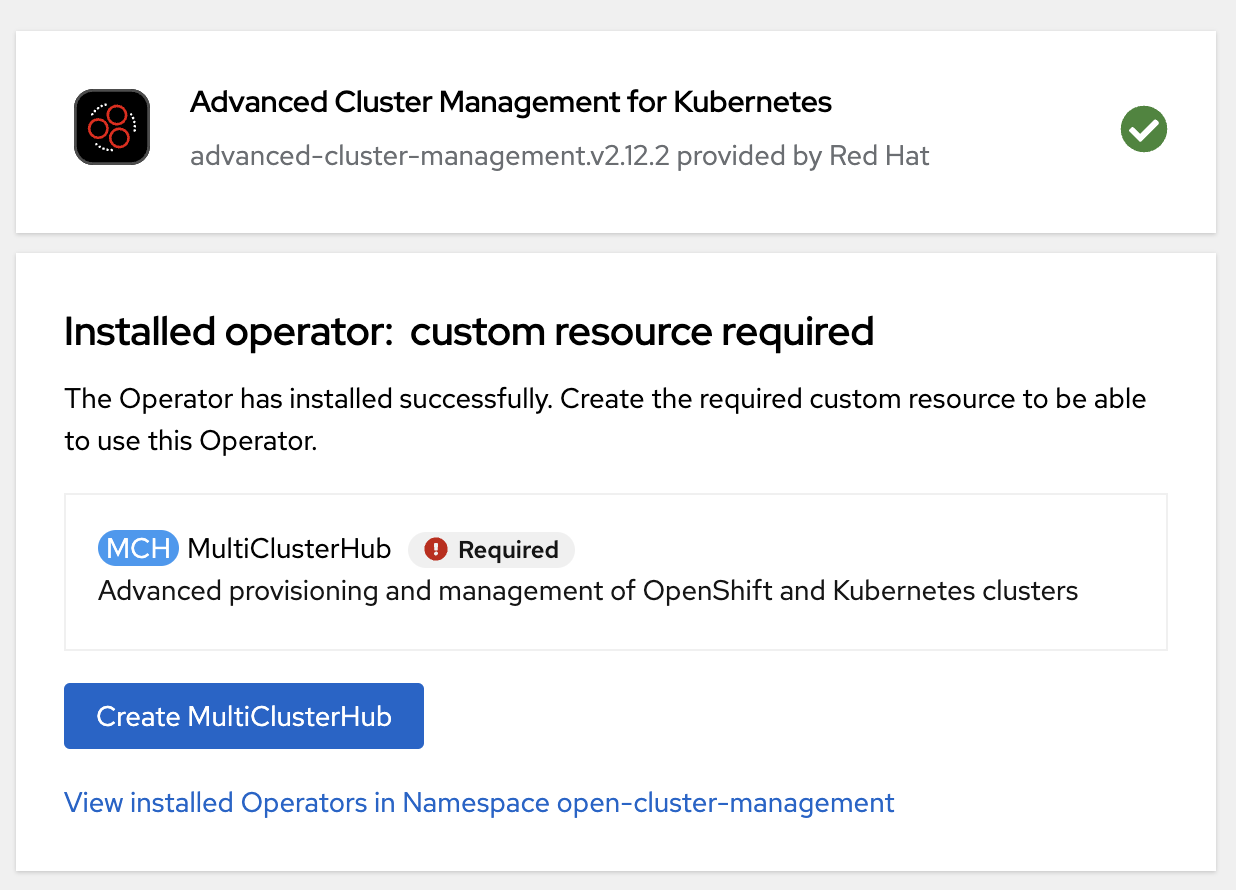

Once installed, click on Create MulticlusterHub.

Once multicluster hub is in running status, our RHACM installation is successful.

2.3.2. OpenShift Virtualization Installation

Now we will install OpenShift Virtualization using default values:

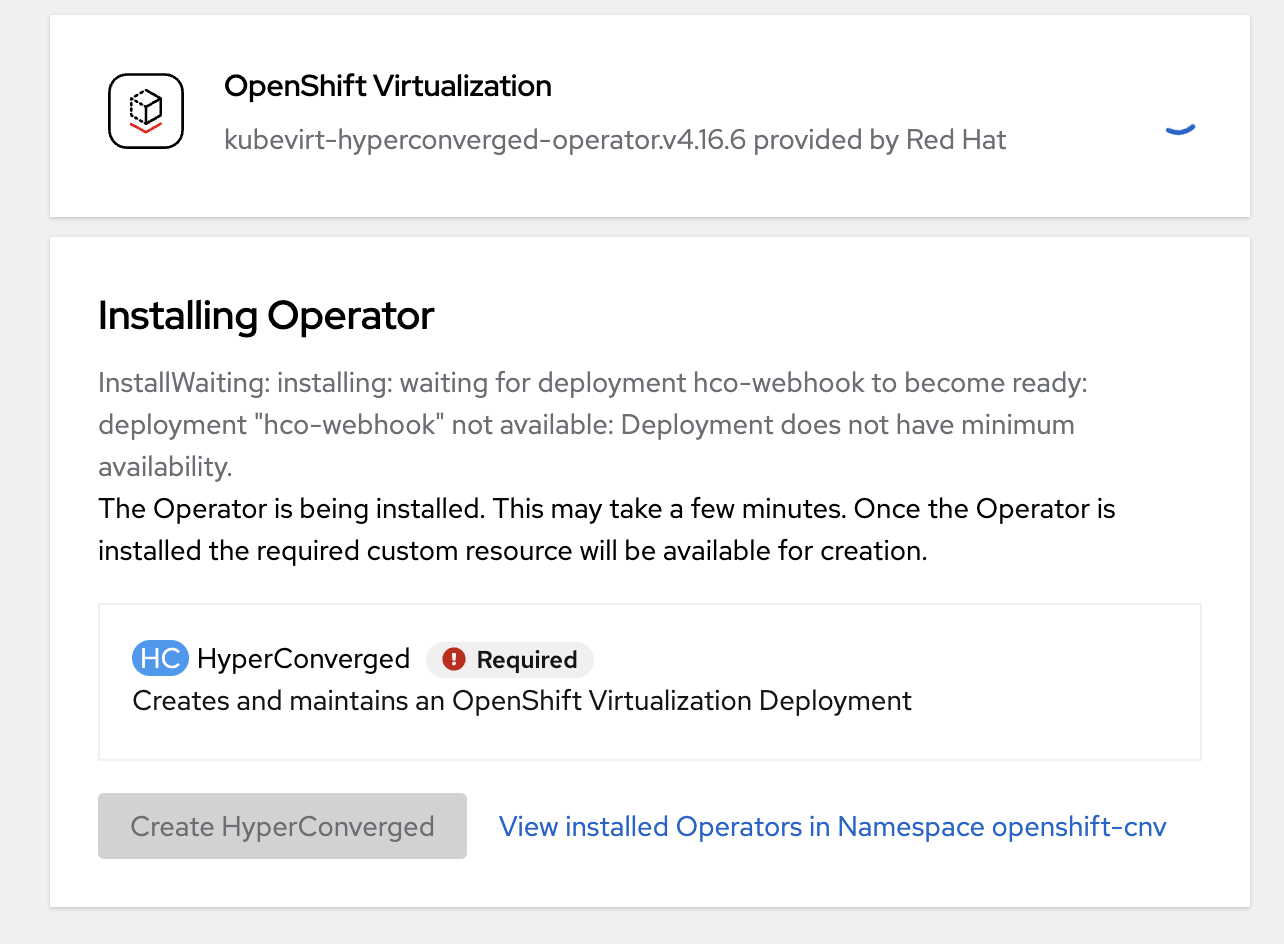

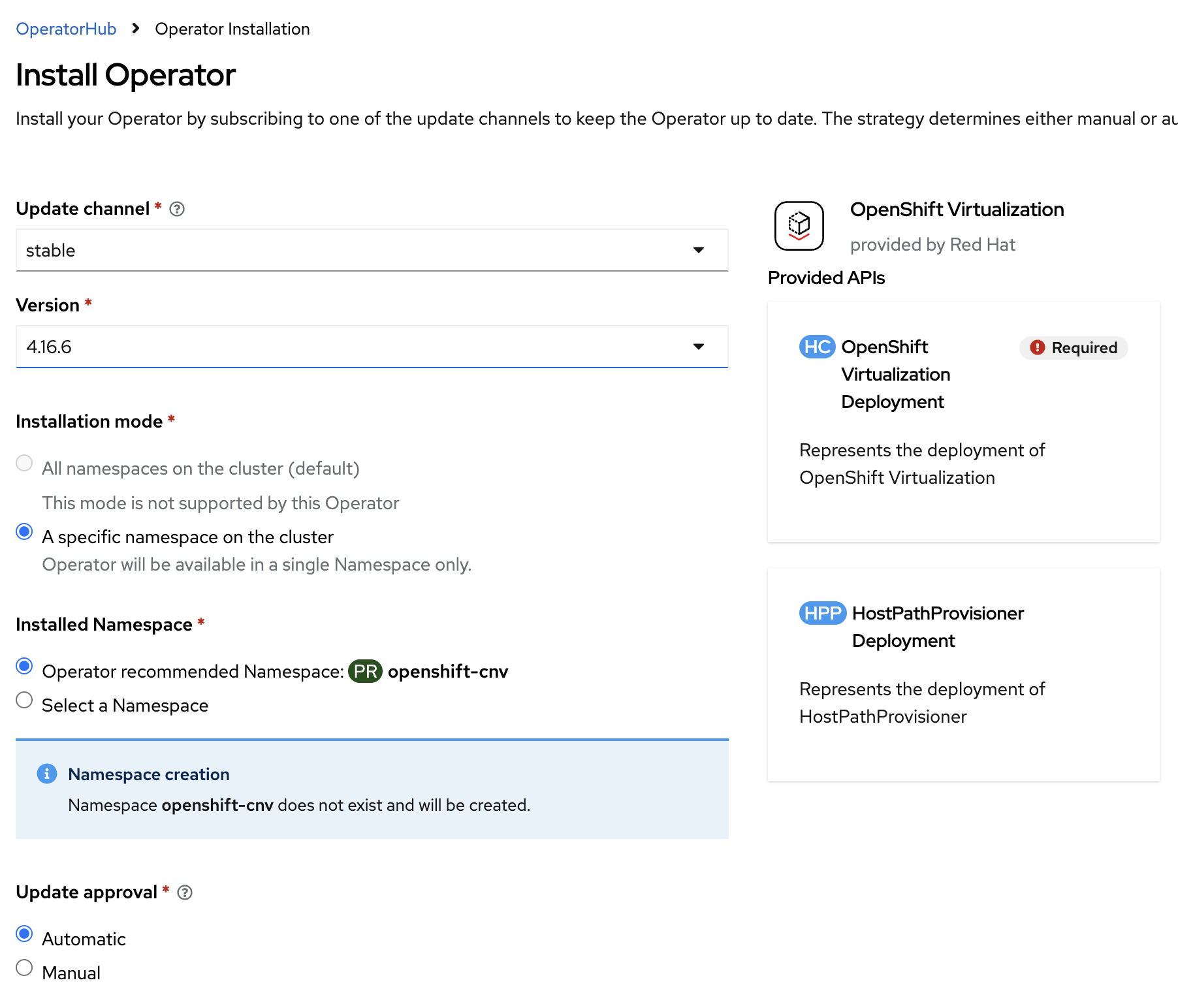

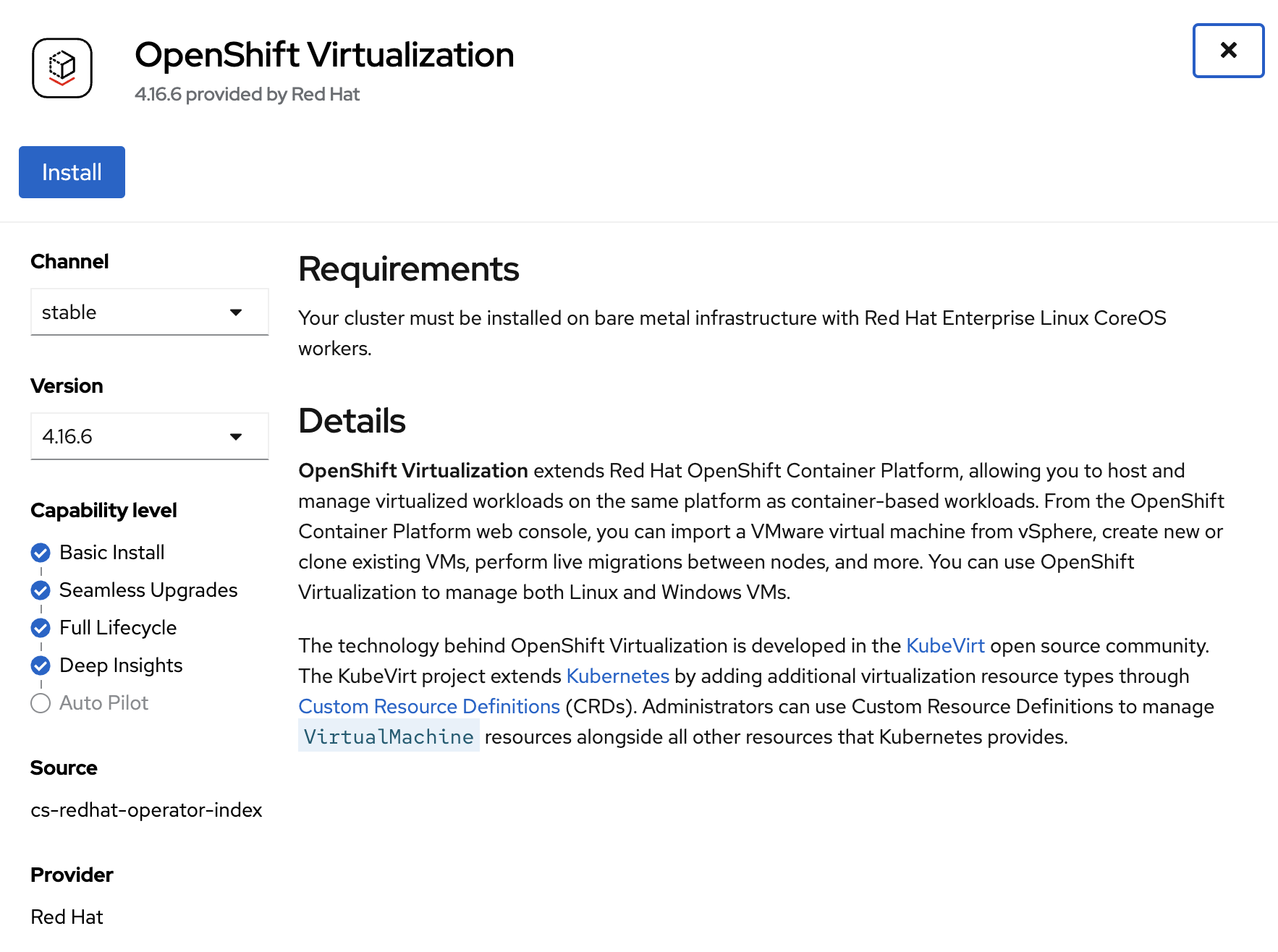

Install OpenShift Virtualization operator from OperatorHub

Select default values and install the operator.

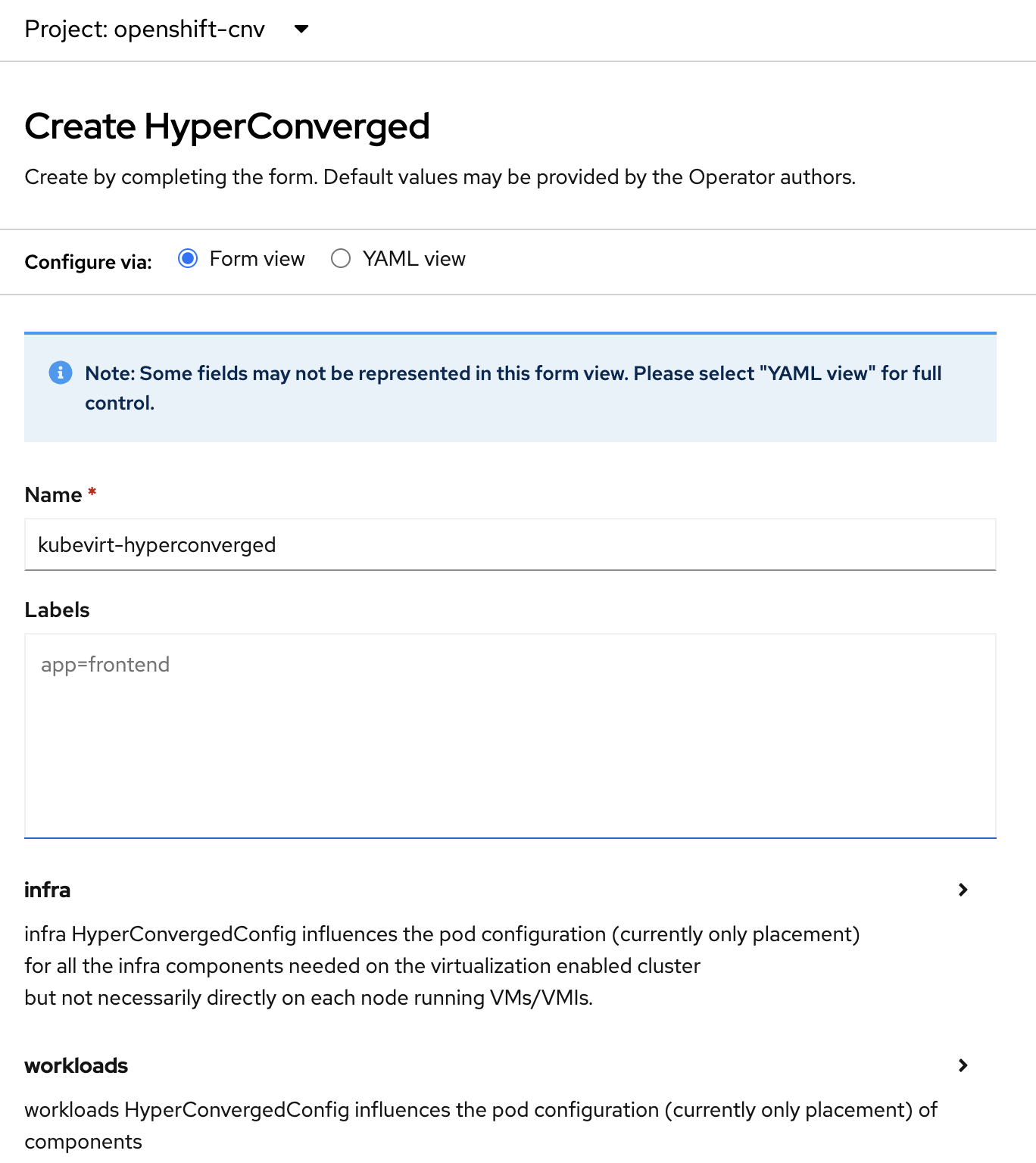

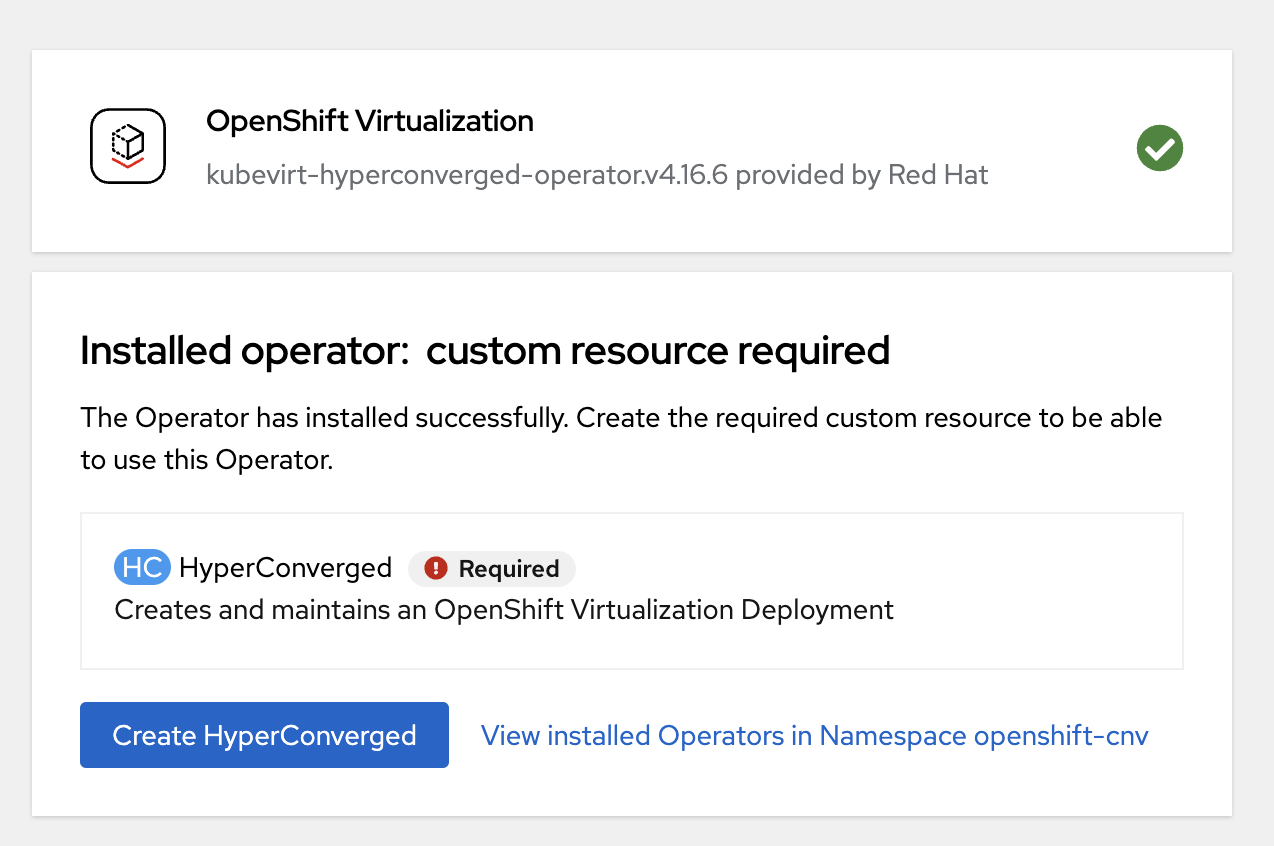

Click on "Create HyperConverged" and select default values.

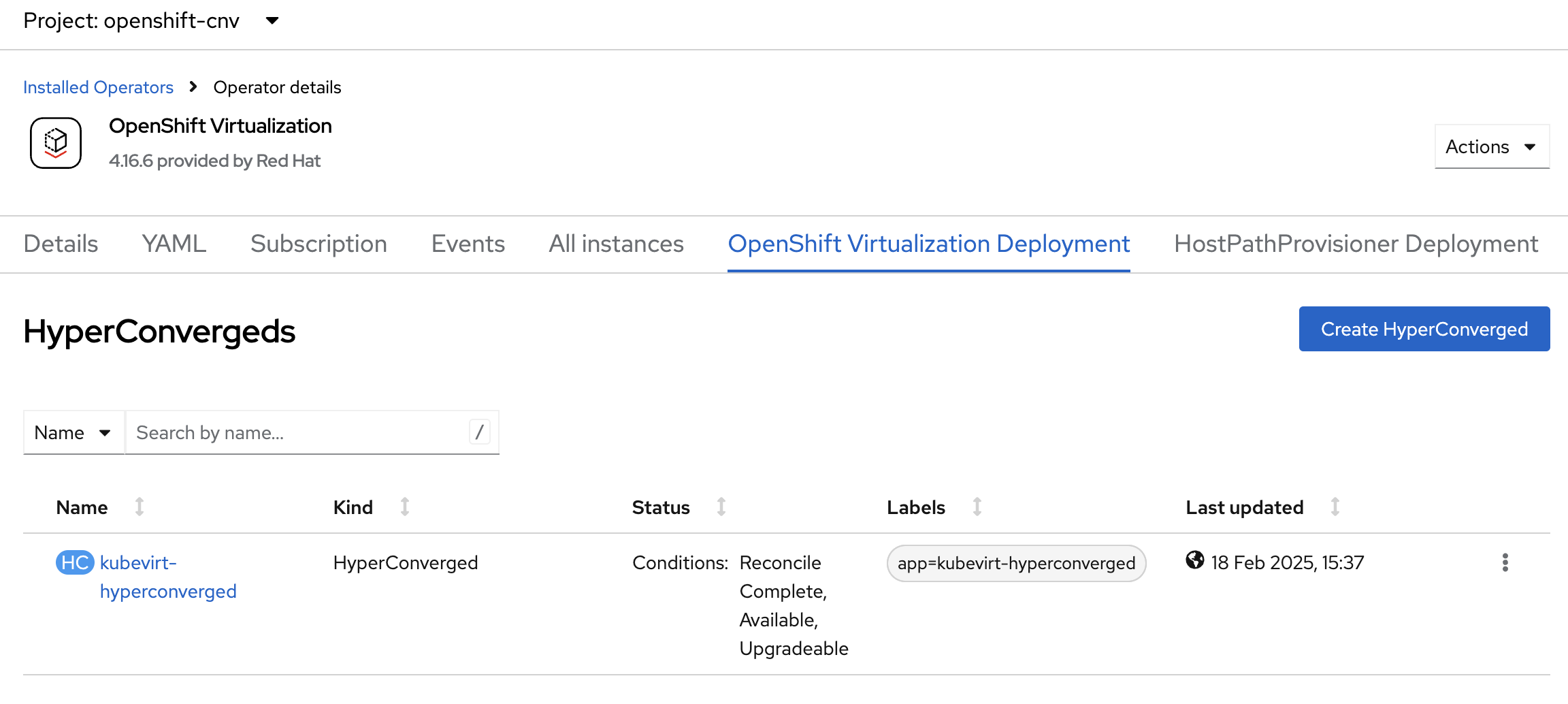

Once kubevirt-hyperconverged is installed successfully, we can proceed with HCP cluster creation.

2.4. Hosted Control Plane Cluster creation:

Creating hosted cluster namespace(clusters-disconnected1) and adding the Registry CA and credentials to the HostedCluster namespace.

---
apiVersion: v1
kind: Namespace
metadata:
  creationTimestamp: null
  name: clusters-disconnected1
spec: {}
status: {}
---
apiVersion: v1
kind: Namespace
metadata:
  creationTimestamp: null
  name: clusters
spec: {}
status: {}

Copy the Registry CA cert from here /opt/registry/certs/domain.crt and create a configmap as shown below.

apiVersion: v1
data:
  ca-bundle.crt: |
    -----BEGIN CERTIFICATE-----
    -----END CERTIFICATE-----
kind: ConfigMap
metadata:
  name: user-ca-bundle
  namespace: clusters

Create a secret for Hosted Cluster to access the Registry.

oc create secret generic disconnected-secret -n clusters --from-file=.dockerconfigjson=./mycreds.json --type=kubernetes.io/dockerconfigjson

Apply this CRD to create a Hosted Cluster and Node Pool.

apiVersion: hypershift.openshift.io/v1beta1
kind: HostedCluster
metadata:
 creationTimestamp: null
 name: disconnected1
 namespace: clusters
spec:
 additionalTrustBundle:
   name: "user-ca-bundle"
 imageContentSources:
 - source: quay.io/openshift-release-dev/ocp-v4.0-art-dev
   mirrors:
   - registry.hypervisor:5000/openshift/release
 - source: quay.io/openshift-release-dev/ocp-release
   mirrors:
   - registry.hypervisor:5000/openshift/release-images
 autoscaling: {}
 configuration:
   operatorhub:
     disableAllDefaultSources: true
 controllerAvailabilityPolicy: HighlyAvailable
 dns:
   baseDomain: ""
 etcd:
   managed:
     storage:
       persistentVolume:
         size: 8Gi
       type: PersistentVolume
   managementType: Managed
 fips: false
 infraID: disconnected1-5lmsw
 networking:
   clusterNetwork:
   - cidr: 10.132.0.0/14
   networkType: OVNKubernetes
   serviceNetwork:
   - cidr: 172.31.0.0/16
 olmCatalogPlacement: management
 platform:
   kubevirt:
     baseDomainPassthrough: true
   type: KubeVirt
 pullSecret:
   name: disconnected-secret
 release:
   image: registry.hypervisor:5000/openshift/release-images:4.17.15-x86_64
 services:
 - service: APIServer
   servicePublishingStrategy:
     type: LoadBalancer
 - service: Ignition
   servicePublishingStrategy:
     type: Route
 - service: Konnectivity
   servicePublishingStrategy:
     type: Route
 - service: OAuthServer
   servicePublishingStrategy:
     type: Route
 sshKey: {}
status:
 controlPlaneEndpoint:
   host: ""
   port: 0
---
apiVersion: hypershift.openshift.io/v1beta1
kind: NodePool
metadata:
 creationTimestamp: null
 name: disconnected1
 namespace: clusters
spec:
 arch: amd64
 clusterName: disconnected1
 management:
   autoRepair: false
   upgradeType: Replace
 nodeDrainTimeout: 0s
 nodeVolumeDetachTimeout: 0s
 platform:
   kubevirt:
     attachDefaultNetwork: true
     compute:
       cores: 2
       memory: 6Gi
     networkInterfaceMultiqueue: Enable
     rootVolume:
       persistent:
         size: 32Gi
       type: Persistent
   type: KubeVirt
 release:
   image: registry.hypervisor:5000/openshift/release-images:4.17.15-x86_64
 replicas: 2
status:
 replicas: 0

We can check the status of our Hosted Cluster using the below commands:

oc get --namespace clusters hostedclusters

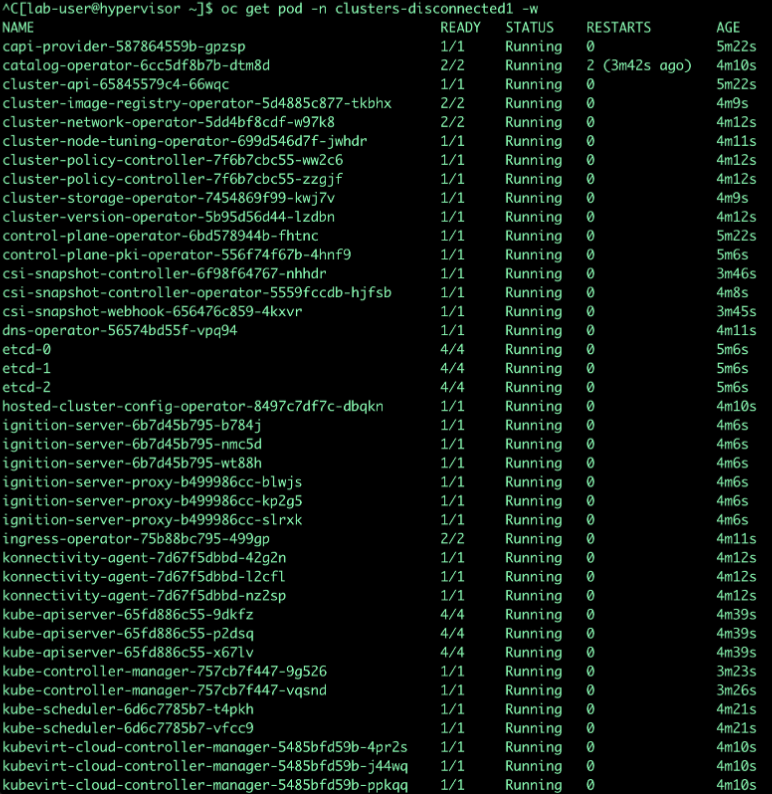

oc get pod -n clusters-disconnected1

oc get pod -n clusters-disconnected1

We can create kubeconfig file and run oc cli commands as well:
- First download the hcp cli, If you face issue in the wget for tls cert, use --no-check-certificate

oc get ConsoleCLIDownload hcp-cli-download -o json | jq -r ".spec"

wget <hcp_cli_download_url>

tar xvzf hcp.tar.gz
chmod +x hcp
sudo mv hcp /usr/local/bin/.

./hcp create kubeconfig --name disconnected1 > disconnected1-kubeconfig


oc get nodes --kubeconfig=disconnected1-kubeconfig

oc -n clusters get nodepool

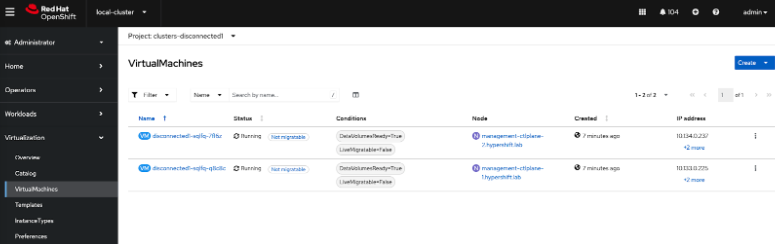

From OpenShift Console, when we go to Virtual Machines, we see:
