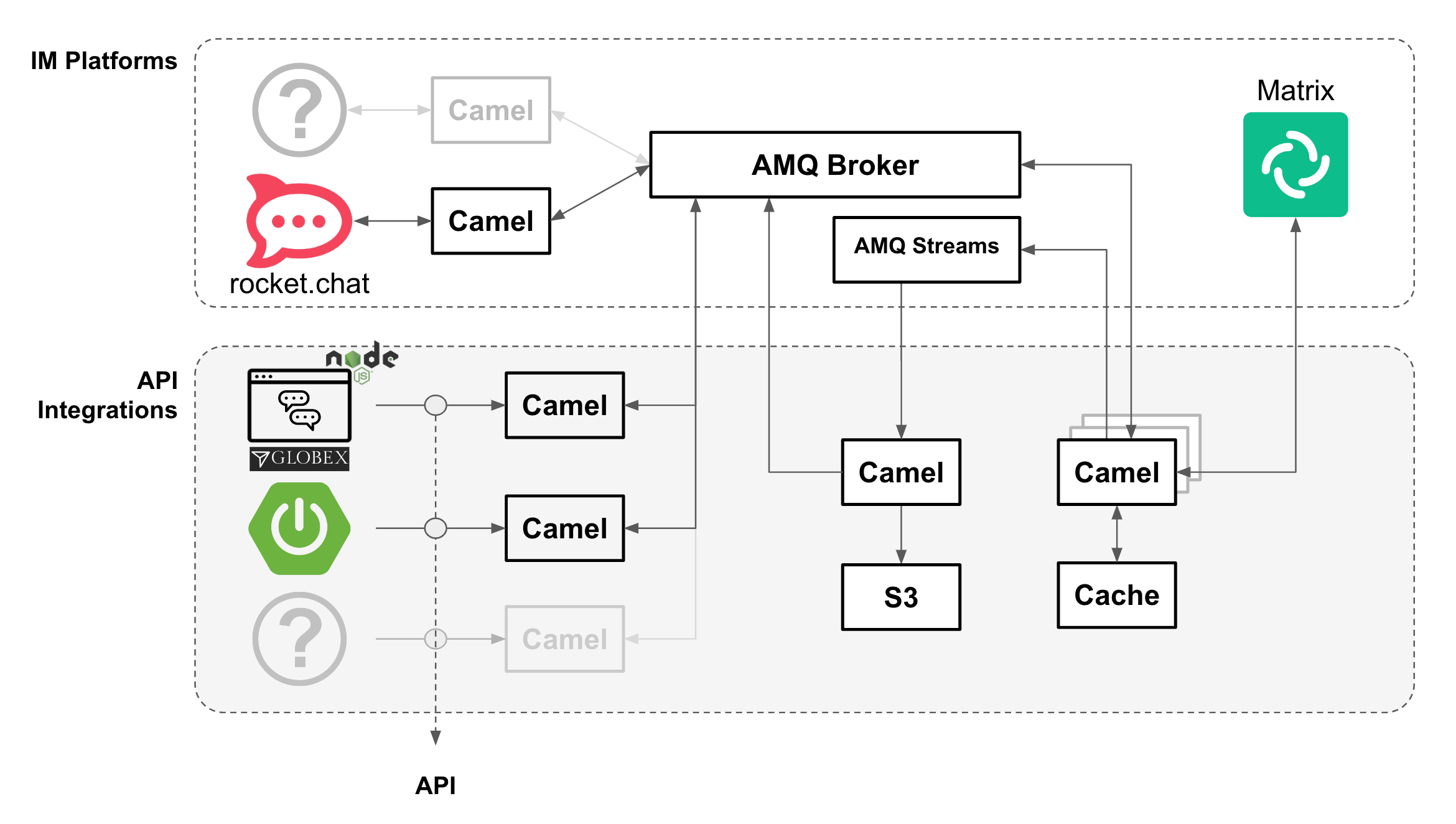

The diagram above is divided in 2 blocks:

The sections below further detail the characteristics of this architecture.

Under increasing volumes of traffic, the architecture is conceived to allow each individual component to scale horizontally.

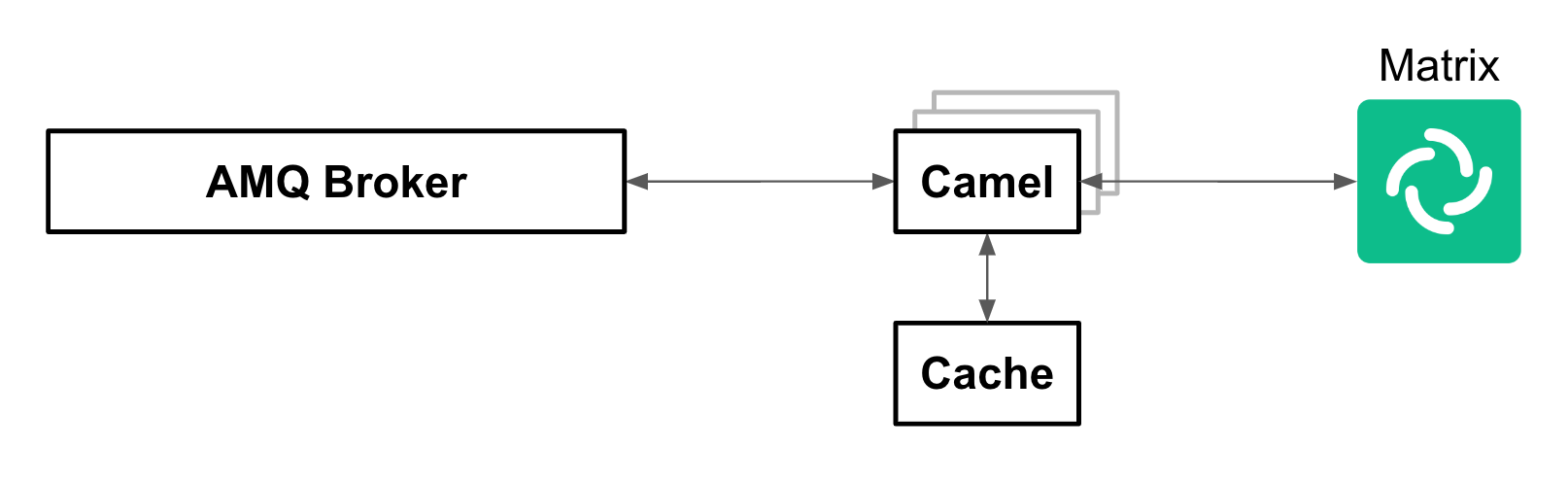

For example, let’s assume the aggregation of input channels results in an increased overall output towards the agent’s platform where the support team attends customers. We are referring to Matrix in the diagram below (could also be Discord, WhatsApp or similar).

We trust the target IM platform’s scalability capabilities under big volumes of traffic. Popular platforms are known to handle millions of messages per second. From our platform’s perspective, we can scale the Camel integration to Matrix by increasing the number of replicas. All Camel instances subscribe to the same queues in the AMQ platform. AMQ load-balances (by design) all the traffic between available subscribers and Camel forwards messages to the target platform using their scalable client API specification.

In the same diagram above you’ll see Red Hat Data Grid (Cache) acting as a backing capability to support and help correlate asynchronous communications between customers and support agents. Data Grid is extremely scalable by design and fit for cloud-native environments.

The same is true for Red Hat AMQ, used in the architecture is the underlying asynchronous messaging capability to decouple the architecture as per the section that follows.

In summary, all the components shown in Figure 1 plug and behave with scalability in mind.

Connecting data sources and destinations is not a trivial challenge, particularly when the number of integrations grows.

For simple one-to-one flows, a single process can handle the data mappings required for both request and response directions. Data needs to be translated from the origin’s data format to the target’s data format.

However, things get complex, exponentially fast, when we start plugging in source and target systems. This is due to the cross data translations required between all different systems.

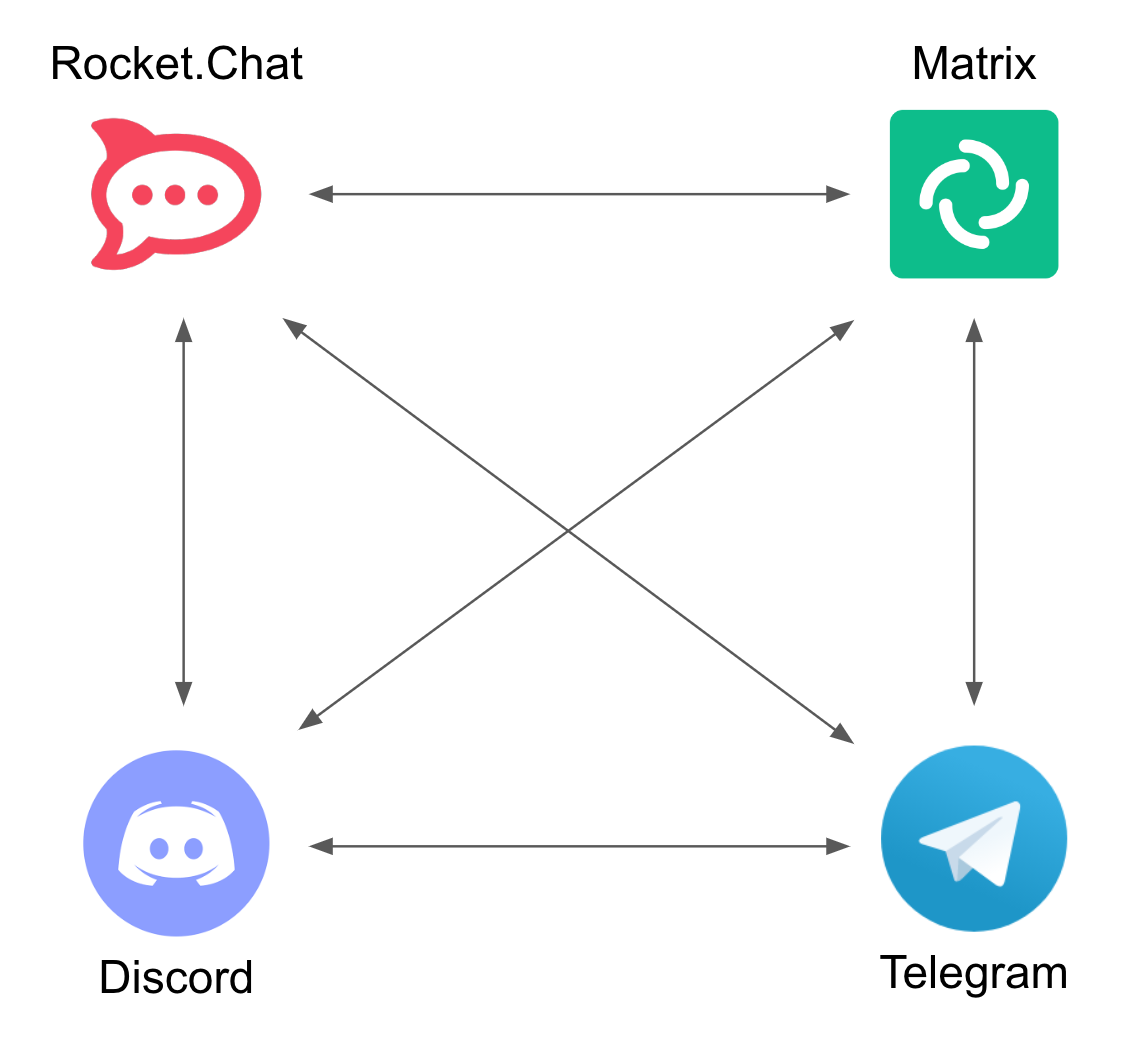

In the diagram above, a one-to-one strategy renders the architecture unable to cope as new systems are added to the platform. Every system requires to be translated to every other system.

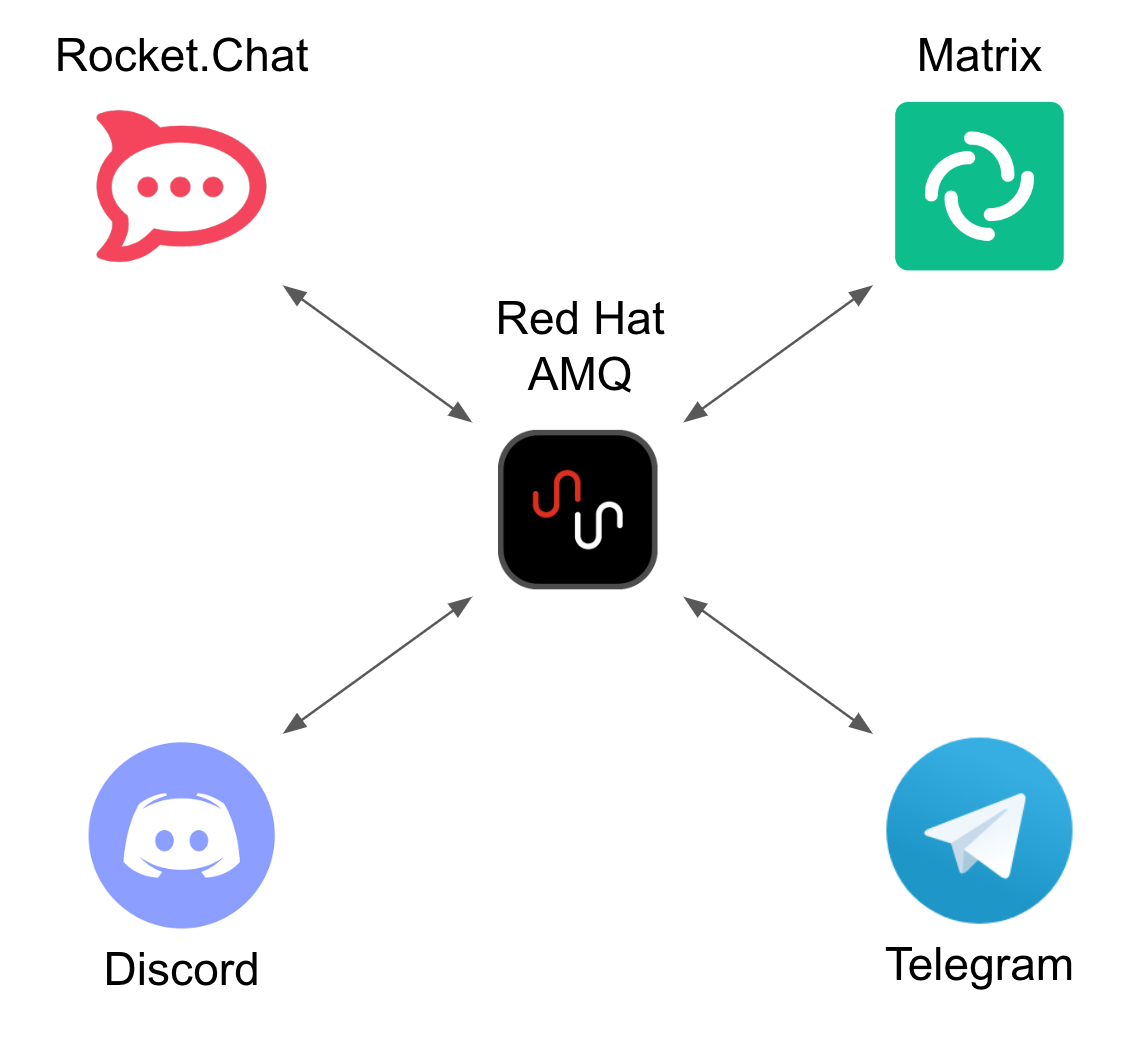

To solve this complexity, the architecture is decoupled by introducing asynchronous messaging with Red Hat AMQ and adopting a star configuration, as the figure below illustrates.

The strategy to transform data between all participant systems in the platform is to adopt a common data schema that mediates between all of formats, reducing the number of data mappings to a manageable degree.

The diagram above illustrates source messages (In) in their original format, then transformed in the common format and placed in the message broker (AMQ), and finally converted to the target format (Out) when sent to the destination system.

A decoupled approach makes the platform very easy to extend. Once you have defined the common schema as a means to interface with other systems, adding new ones to the platform becomes almost effortless.

For example, if the platform wants to be extended to include a popular IM platform, all that is required is to define the integration piece that translates IN/OUT messages to/from the common schema.

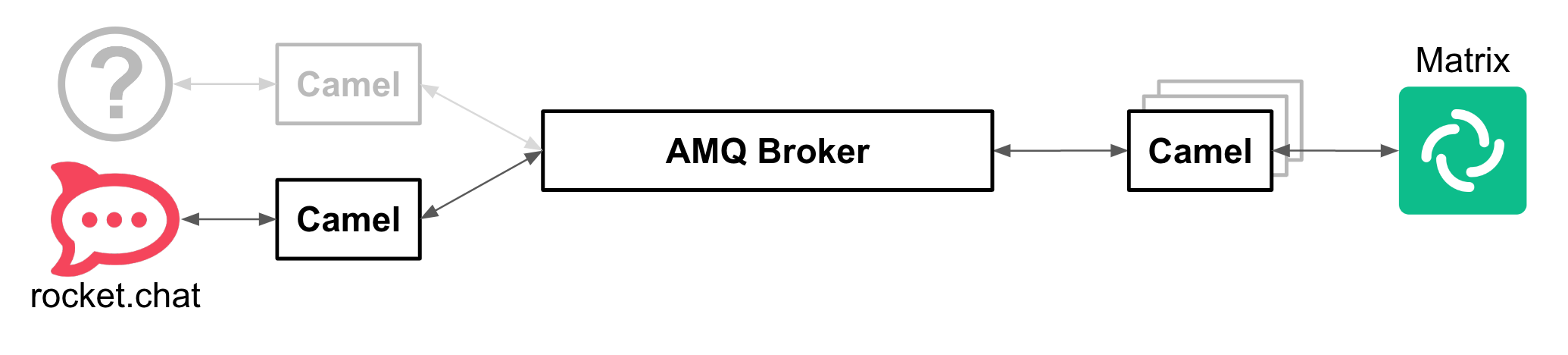

In the above diagram, the (?) system represents the new IM platform to be plugged in. Connecting and integrating using Camel, as represented in the picture, supposes no impact or additional changes in the existing platform.

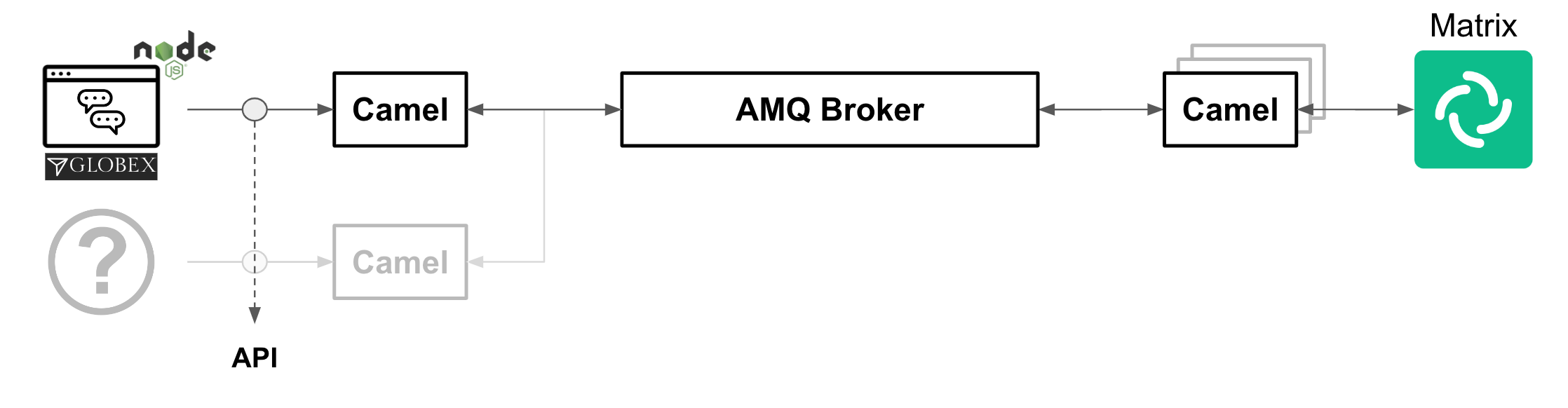

The solution’s demo also integrates the Globex’s Web portal (see below), where an embedded Chat widget uses an API to connect to the platform via a Camel integration.

Similarly, if you wanted to extend the platform to include new API-based channels or services, adding them in would be straight-forward.

In the picture above, the (?) system represents the new system added in and connecting via an API exposed by a Camel system.

One crucial component in the architecture is Red Hat Data Grid, which is based on the open source project Infinispan.

Data Grid provides caching capabilities. In the context of this Solution Pattern, because it has a decoupled architecture and is event-driven, events freely flow in a non-blocking manner with no active waits for responses. Processes consume these events and react to them by firing new events/messages.

Caching provides the capability to temporarily store the context of these communications. Apache Camel can retrieve contextual information from Data Grid to correlate the information.

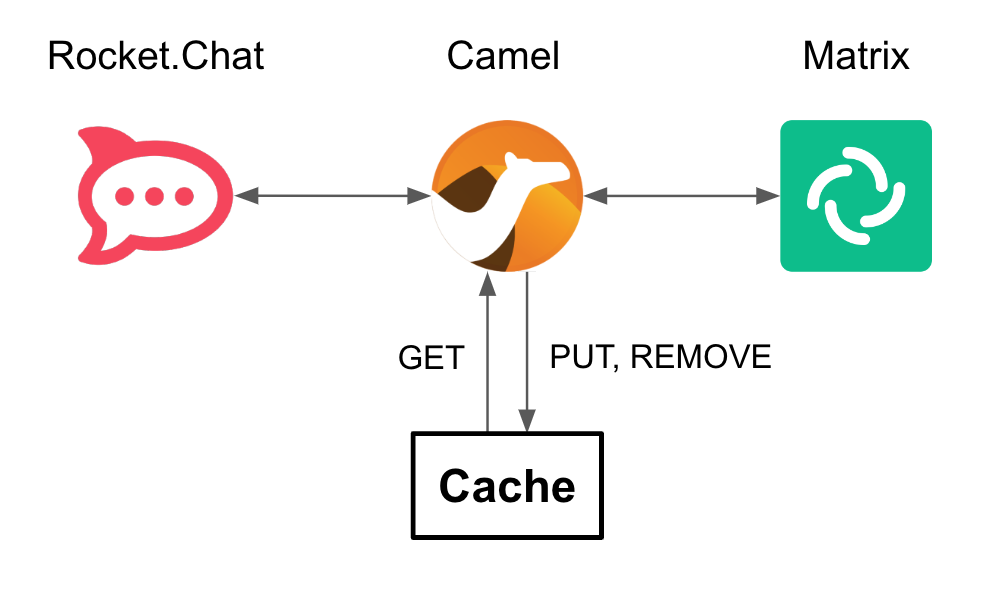

The picture above represents the role of Apache Camel and Data Grid to perform customer/agent context read/writes.

To illustrate the different stages of a support interaction between a customer an an agent, the following actions take place:

A requirement the solution pattern also covers is the capability to persist communication exchanges. By doing so, additional capabilities can be factored in to implement extra requirements, for example to meet data retention policies or to comply with government regulations to satisfy security and data privacy measures.

A key capability in the solution is AMQ Streams (Kafka). For every exchange traversing the platform, copies are sent to Kafka.

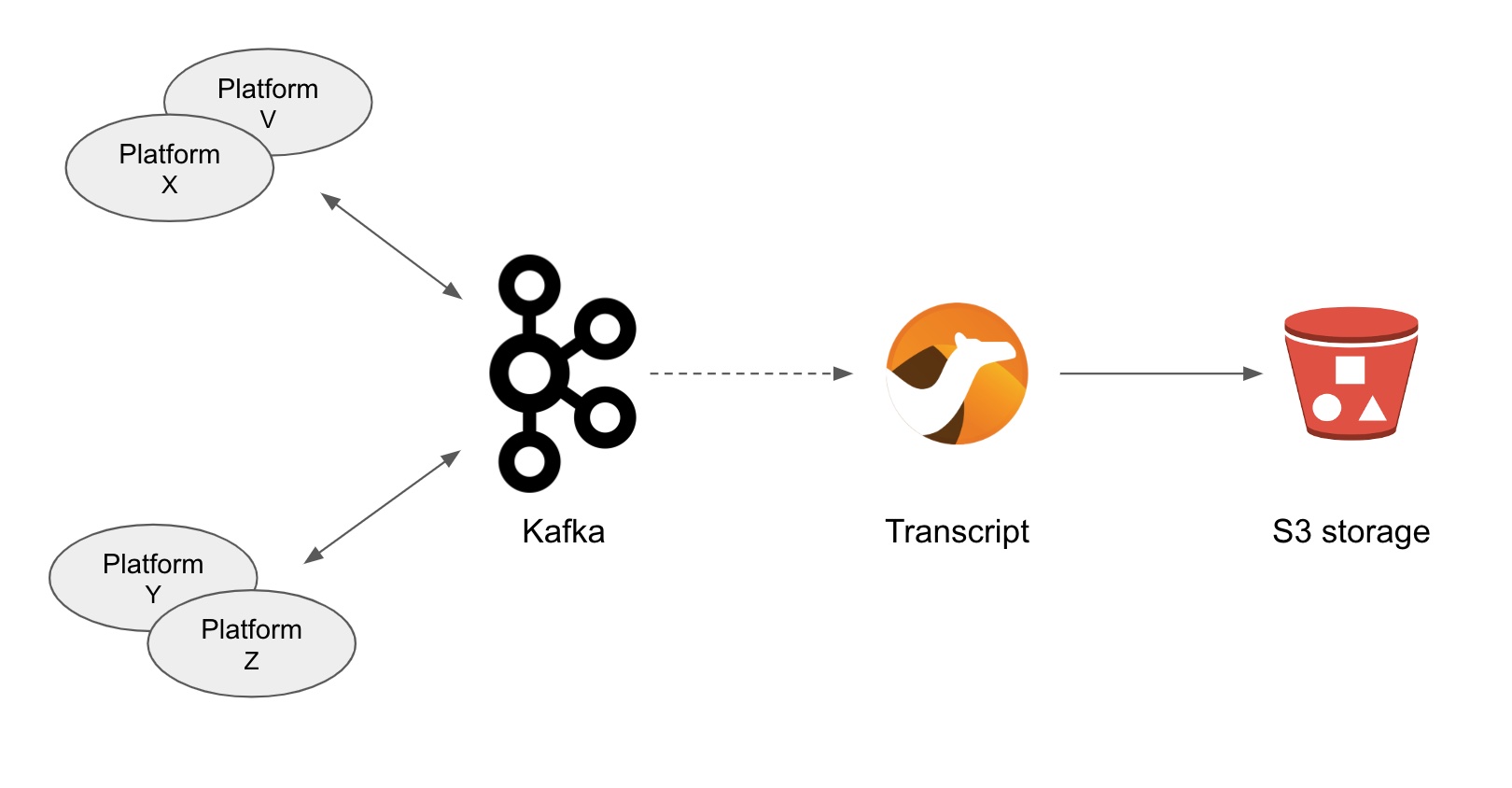

Looking more in detail into the different stages included in the architecture we find the processes writing conversations into object storage.

Kafka is used to replay customer/agent messages. The figure above shows traffic directed to kafka and consumed, processed and persisted by Camel.
